IS-30R external rotation infrared gate safety beam with a wireless transmitter and there’s no need to tunnel under the driveway, With external rotation 180 degree, Simply rotational align, More convenient and safe for door automation!
2. The transmitter is wireless and battery-operated saving time and money.
3. 30 meters operating range – ideal for almost any entrance gate.
4. Fully ant-proof and weather-resistant enclosure for greater reliability.
5. Transmitter provides audible feedback for easy setup and battery-low indication.
6. Low power consumption throughout the system for greater efficiency.
7. Compatible with Intruder-detection Alarms for enhanced perimeter security.
8. Quick, easy installation with built-in laser beam alignment system.
Why choose our IS-30R?
1.180 degree external rotation align
IS-30R most outstanding feature is 180 degree external rotation, you can only adjust it with 180 degree, easy installation and more convenient for some special project sites.2.Low power consumptionThe wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and a longer battery life, so you’ll have reliable automated gate safety for years to come.3.Highly cost-effectiveOne can’t put a price on safety - but you’ll be happy to know that IS-30R photocells deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!4.Compatible with any brand gate operatorThe IS-30R photocells are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.5.Long-distance performerOur wireless safety photocells with a 30 metre operating range, IS-30Ris suitable for even very wide entrances. No matter how big the entrance, IS-30R is an ideal for virtually any entrance gate.6. Fully weatherproof enclosureIS-30R photocells fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather.7. Suitable for universal installations.Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring etc. Anti-theft of automatic gate translation door switch induction signal/door, windows. No more cutting driveways to run cables required, perfect to retro fit on existing installations.8. Flexible business modelWe are very willing to help our customers to develop their own brand and assist customers in their local marketing. And not only wireless photocell sensor, we will further develop a series of high-quality products around the automatic door and villa security solutions. And to help customers promote at local marketing and form customer's own brand ,help our create more and more benefits, growing up together.
Innovative Application Solution Reference Combined With Solar Energy System
The solar panel collects light energy, and the energy is stored in the battery through the controller. The battery supplies power to the IS-30R wireless infrared receiving end and the wireless transmitter, and the wireless infrared transmitting end is powered by the AA battery. When the wireless infrared sensor detects someone passing, The information will be transmitted to the wireless receiving end, and the signal will be transmitted by the wireless transmitter. The wireless receiver transmits the corresponding signal to the alarm host, and the whole system does not need to damage the road surface, and does not need to be laid cable, safe and convenient.

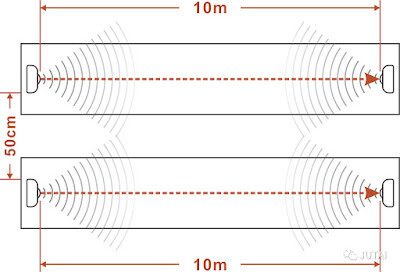

Two Pair photocell Anti-minimum interference distance
The minimum distance is 50cm if the RX and Tx of 2 pair photo sensor with 10m detection distance.
JUTAI photocells compare with other rotational photocells
Product Size
Installation
1. Align the two holes in the case andlock two screws
2. Put the battery inside ( transmitter ) ,hread the cable out ( receiver )
3. Fix the screw
4. Rotate the angle as required , andfinally fix the bottom screw
Installation Reference Gate Automation System Application
Smart Parking Management System The JUTAI parking lot management system uses the card, ticket to identify the vehicles entering and exiting the parking lot in real time, such as permitrejection, guidance, recording, charging, release and other intelligent management. Effectively control the access of vehicles and personnel. Record the data in detail and calculate the amount of the charge automatically. Achieve safety management of on-site vehicles and charges. Parking entry/exit terminal machine JUTAI provides multi-mode machine for customers selections, small size paper ticket system, standard IC card parking system, and standard folding ticket parking system. 1. Automatic parking with paper ticket for managing occasional users and collect parking fee JTPE-1 ENTRY TERMINAL and PM-900 EXIT CONTROLLLER ENTRY TERMINAL: The compact entry terminal is quick and simple to use and is based on a barcode ticket system. Occasional users take the paper t...
An inductive loop detector is an electromagnetic communication or traditional traffic detection system which mostly uses buried coils and moving magnet to induce an electric current. And it is currently the largest amount of traffic detection device in the world. The embedded toroidal coil type vehicle detector is mainly composed of a regulated power supply, an oscillating coil, a logic circuit, a microprocessor, an interface and a driving circuit, a signal output circuit, an induction coil and so on. A vehicle detector is based on the principle of electromagnetic induction. A group of (2) ring-shaped induction coils with a certain working current are buried in the roadbed section of the same lane. When the vehicle passes or stops in the annular buried coil, the vehicle itself cuts the magnetic flux line, causing the wire loop inductance. The amount of change, the detector can detect the passing state of the vehicle by detecting the change of the inductance, and transmi...
